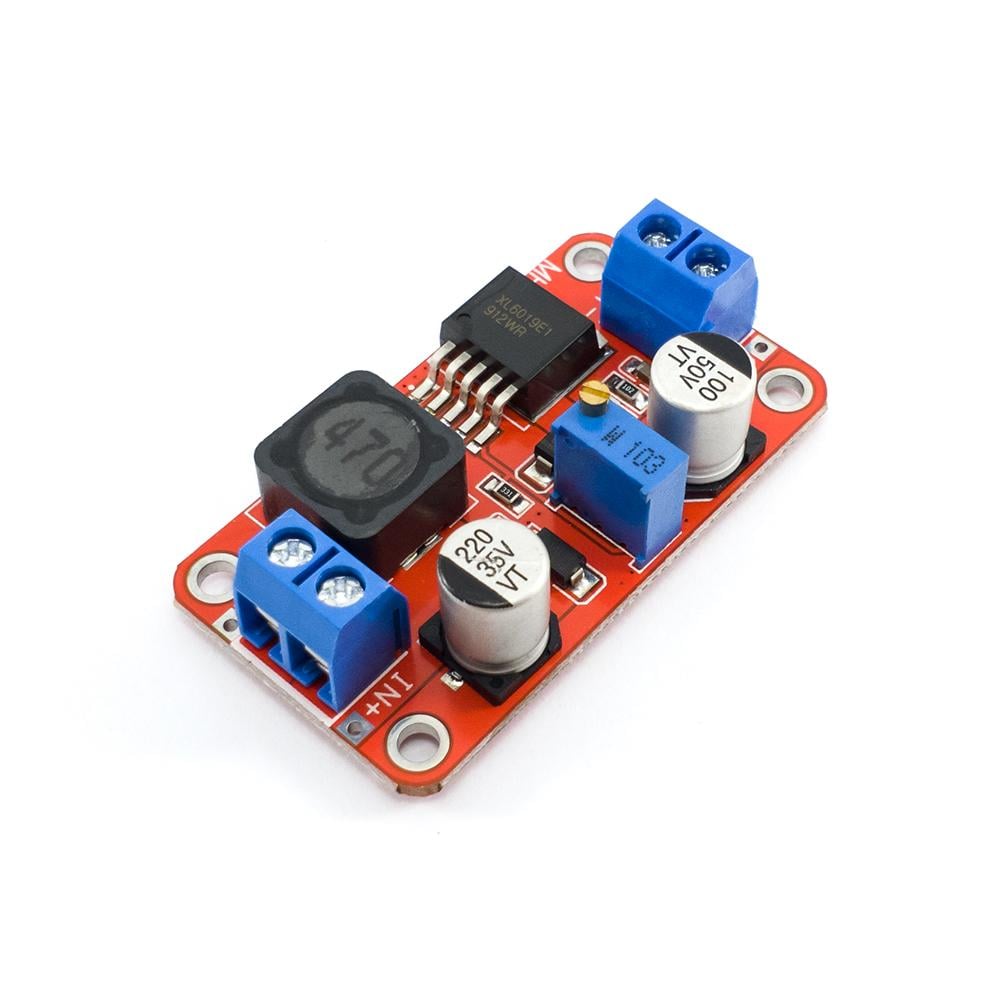

XL6019 DC-DC Step Up Power Module DC-DC Boost Volt Converter Adjustable Output 3V-40V To 5V-45V Power Supply Type 10
23 SAR
Features
- Module Type: DC-DC Boost / Step-Up Converter (Non-isolated)
- Switching Control IC: XLSemi XL6019
- Input Voltage Range: 3.0 – 35VDC
- Output Voltage Range: 5.0 – 40VDC
- Max Output Current: 4A
- Max Output Power: 30W (If greater than 10W requires additional cooling)
- Conversion Efficiency: Up to 94%
- Operating Frequency: 180kHz
- Output Ripple Voltage: < 100mV
- Load Regulation: ±0.5%
- Operating Temperature: -45 to +85°C
- Built-in Protection: Input Reverse Polarity Protection, Output Short Circuit; Over Temperature
- Indicator LEDs: Red power LED
- Dimensions: ~(50mm x 28mm x 13mm)
