11 VISION
O11 VISION
- Three sides of column-less glass panels provide the most seamless view of components
- Modular and toolless design panels and fan brackets ensure a friendly installation process
- Supports a up to 2 × 360mm radiators + 1 × 240mm radiator and a maximum of 8 fans (11 fans with push-pull setup)
- Features 27mm tall feet and hollowed bottom design to increase cold air intake.
- Dual-chamber layout with cable management compartment and cable holders
- Number of PSU supported : 1
Categories: Cases, Medium Case
Tags: aluminum PC case, best case, chassis, computer case, dual chamber chassis, E-ATX, gaming case, Lianli, medium cases, PC build, PC modding, PC tower, PC-O11Dynamic, RGB, tempered glass, water cooling
3 SIDES OF GLASS
COLUMNLESS DESIGN
ENHANCED MODULARITY
3 SPACES FOR RADIATORS
5 DRIVES CAPACITY
CABLE MANAGEMENT FRIENDLY
IN COLLABORATION WITH PCMR
LIAN LI joins forces with PC Master Race (PCMR) to present the O11 Vision. By combining LIAN LI’s expertise in crafting high-quality, feature-rich cases with PCMR’s community of PC enthusiasts, we created a product that builders truly desire. The result is a dual-chamber case with three sides of borderless tempered glass panels that give the clearest view of the system. The O11 Vision embodies the spirit of LIAN LI and PCMR, providing PC enthusiasts the opportunity to create their finest masterpiece.

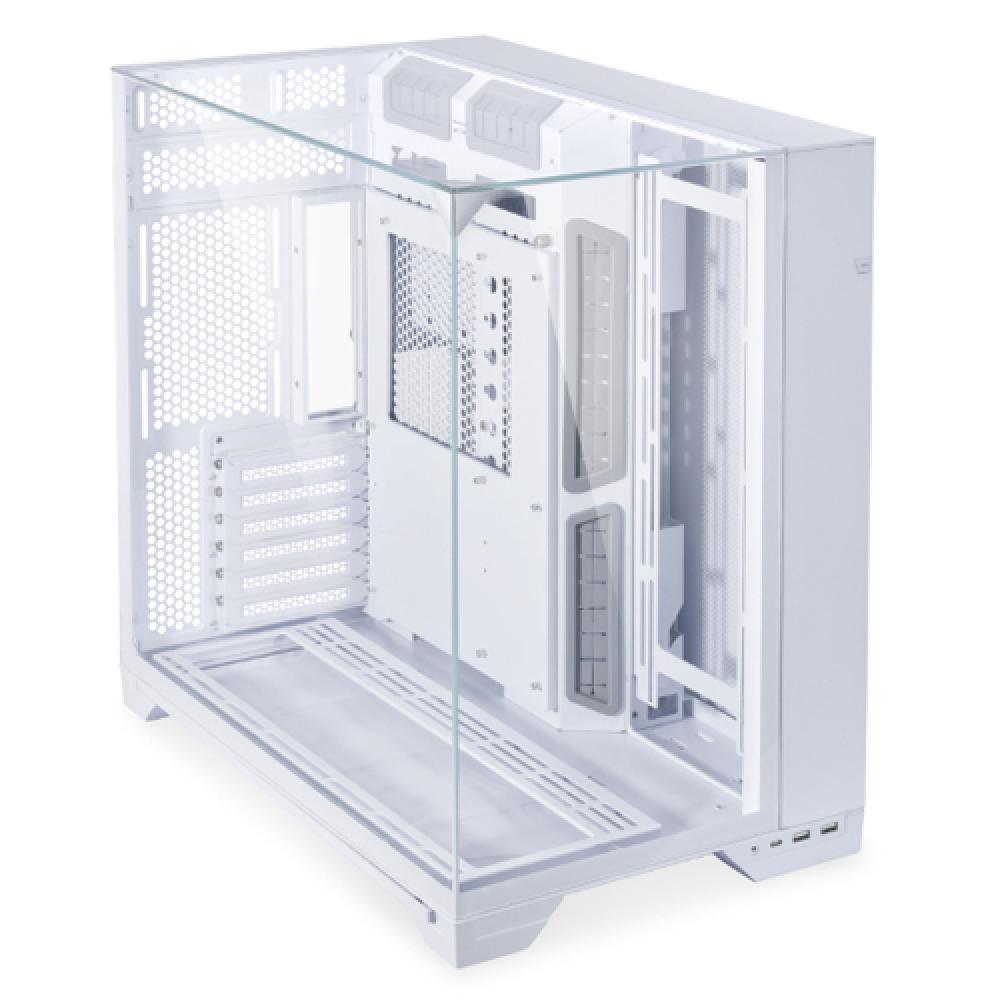

UNOBSTRUCTED HARDWARE SHOWCASE
Display your style and showcase the power of your PC with the O11 Vision, a chassis that features three sides of tempered glass panels without any columns or pillars for the ultimate unobstructed view of the system.
White
Black
Color Chrome
(Black Mirror Finish)
BEAUTY IN EVERY ANGLE
Just like the classic O11 series, O11 Vision is available in black and white, crafted from the finest materials, and looks stunning from every angle.
- Brushed Aluminum
- 3mm Tinted Top Tempered Glass
- Inner Corner Silkscreen
- 4mm Tinted Side and Front Tempered Glass
- Black Coated Mesh Panel
- Aluminum with White Powder Coating
- 3mm Clear Top Tempered Glass
- Outer Corner White Silkscreen
- 4mm Clear Side and Front Tempered Glass
- White Coated Mesh Panel
- Brushed Aluminum
- 3mm Mirror Finish Top Tempered Glass
- 4mm Mirror Finish Side and Front Tempered Glass
- Black Coated Mesh Panel
BALANCE BETWEEN COOL AND CLEAR
The O11 Vision not only boasts a striking appearance but also doesn’t compromise on cooling capabilities thanks to its 27mm tall feet and hollowed out bottom fan bracket with 13mm elevation, ensuring ample airflow intake within the chassis.Offers support for a maximum of 2 × 360 + 1 × 240 radiators, ensuring efficient thermal control.
SEAMLESS BUILD PROCESS
Every bracket and panels are designed for modular and toolless removal, simplifying the build process and allowing for customizable configuration.
Note: The front glass panel is also removable but we do not suggest doing so during the normal installation process.
SOLID STRUCTURE
Strong structural support is designed with robust keys rated for 35kg of force, ensuring unwavering stability for all three side glass panels
TWO-WAYS REVERSIBLE SIDE FAN BRACKET
Inner Scenario
For 75mm space in the main chamber
Outer Scenario
Optimized for a push-pull configuration
REMOVABLE BOTTOM FAN BRACKET AND DUST FILTER
Able to remove the fan bracket to install the radiator or fan with ease and clean the dust filter.
ADJUSTABLE MOTHERBOARD TRAY
Mount the motherboard, CPU pump, and graphics card outside the chassis first to make the installation process easier.
HIGH MODE
LOW MODE
Enhance your PC’s aesthetics or maximize radiator space, catering to style-conscious users and water-cooling enthusiasts.
RECOMMEND SET UP
- Side Intake with push-pull 360mm radiator and 6 ×120mm fans
- Rear Exhaust with 1 ×120mm fan
- Bottom Intake with 3 × 140mm fans or radiator
EASY TO ACCESS
The front I/O ports are strategically positioned at the bottom of the chassis, ensuring convenient access when the case is placed on a table, all while showcasing its aesthetic appeal.
THE CLEAN CABLE MANAGEMENT SOLUTION
To maintain the most aesthetic view in the main chamber, O11 Vision is designed with cable management in mind in the second chamber.
Flexible Cable Clips
Features 2 dual-layer cable clips that can be mounted anywhere along vertical grommets pass through, providing versatility for your cable routing plan.
Bulky cables can be securely held in the cable holder.
Thinner cables can be managed using Velcro straps.
Extended Room
The PSU mounting bracket protrudes 15mm from the rear of the case, allowing extra space for cable management. Additionally, a cable tie point along the rear of the case helps keep the rear I/O cables tidy.
MULTI-FUNCTION STORAGE BRACKET
Offering the flexibility usage of the bracket for cable routing or a drive installation.
Cable Management Bar
2.5” SSD × 3
The removable cable management bar helps tidy up your system and give it a better aesthetic.
Individual Drive Cage
2.5” SSD × 2 or 3.5” HDD × 2
Each drive cage can be removed to gain space for the cable routing.
COVERING THE GAP
Included 2 silicone covers for low mode configuration to provide a clean look for cable management.
If your O11 Vision doesn’t include the silicone grommet set, please get one on AliExpress at a minimal cost or contact us to claim one. This only affects a small number of users. Thank you for your understanding.
DISPLAY OF YOUR GPU
(Optional Accessory – VG4-4,VG4-4V2)
LIAN LI’s O11 Vision, compatible with its universal vertical GPU kit, offers a professional and attractive build aesthetic through vertical GPU mounting.
Note: Installing the vertical GPU kit in the low mode at the 1st expansion slot covers the GPU top output port with a bracket, and installing at the 2nd expansion slot, will lose the bottom fan mounting space.
DOWNLOAD
SPECIFICATIONS
PRODUCT NAMEO11 VisionCASE TYPETower ChassisMODELO11VXO11VWO11VCCOLORBlackWhiteColor Chrome (Black Mirror Finish)DIMENSION(D) 480mm x ( W ) 304mm x (H) 464.5mmMATERIALSteel
4.0mm Tempered Glass
3.0mm Tempered Glass
AluminumMOTHERBOARD SUPPORTE-ATX (Under 280mm)/ATX/Micro-ATX/Mini-ITXEXPANSION SLOT6+1STORAGEBehind MB Tray: 3 x 2.5” SSD
Hard Drive Cage: 2 X 3.5′′ HDD or 2.5′′ SSDGPU LENGTH CLEARANCE430mm (Max.)CPU COOLER HEIGHT CLEARANCE174mm (Max.)PSU SUPPORTATX (Under 232mm)FAN SUPPORTSide: 3 x 120mm / 2 x 140mm
Bottom: 3 x 120mm / 3 x 140mm
Rear:1 or 2 x 120mmRADIATOR SUPPORTSide: 360 / 240 / 280mm
Bottom: 360 / 240 / 280mm
Rear: 240/ 120mmI/O PORTS1 x Power Button
1 x Reset Button
2 x USB 3.0
1 x USB Type C
1 x AudioDUST FILTERBottom × 1
