- Body: 2.0” impact-extruded and CNC-machined 6061-T6 clear anodized aluminum body for superior heat dissipation and rust resistance.
- Reservoir: Internal IFP mono-tube reservoir design for consistent damping performance.
- Components: Black-anodized, CNC-machined 6061-T6 billet aluminum components for enhanced durability.
- Shaft: 5/8" hard chrome-plated, heat-treated alloy steel for maximum strength and reliability.
- Piston: Race-developed high-flow piston design for optimized performance.
- Valving: Application-specific tuning for maximized performance tailored to the F-150.
- Seals: Redundant sealing pack system with main seal, wiper seal, and scraper seal for improved reliability.
- Travel: 4.89 inches.
- Front Lift Height: 0-2 inches.
- Extended Length: 23.21 inches.
- Compressed Length: 19.6 inches.
- Top Mount: OEM.
- Bottom Mount: Bar Pin.
- Part Number: 985-02-146.
- Fitment Notes: Not compatible with Hybrid and Tremor submodels.

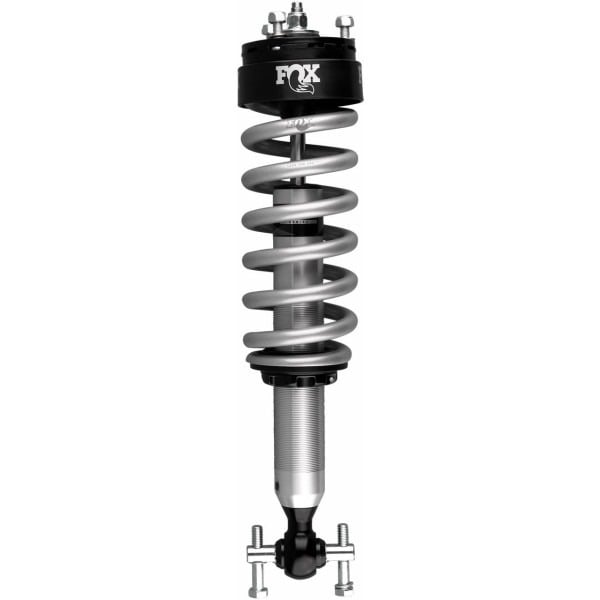

Ford F150 21-24, 2.0, IFP, 0-2", Stage 1
٧٬٠٤٠٫٥٥
٧٬١٤٠
رقم الموديل
(985-02-146)-(985-24-265)
